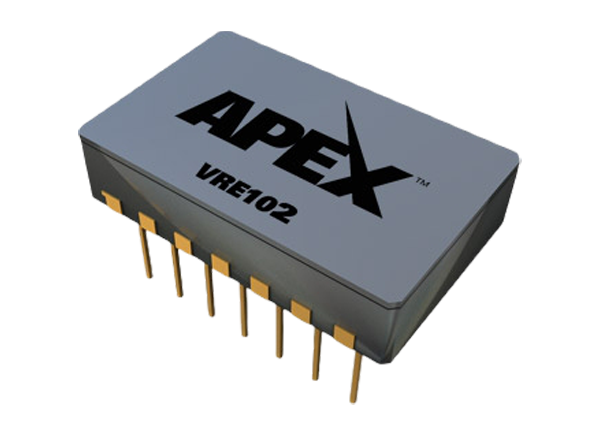

Apex Microtechnology VRE102 Ultrastable ±10V Output Voltage Reference provides a ±1.0mV initial accuracy and a 1.09 ppm/°C temperature coefficient over the full military temperature range. Improved accuracy is possible by a multipoint laser compensation technique. Other performance parameters improvements have been made including initial accuracy, warm-up drift, line regulation, and long-term stability. This makes the VRE102 an accurate and stable 10V reference.
±10V output, ±1.0mV very high accuracy
1.09ppm/°C (-55°C to +125°C) extremely low drift
1.0ppm typical low warm-up drift
6ppm/1000 hours typical excellent stability
Excellent line regulation – 3 ppm/V typical
Hermetic 14-pin ceramic DIP
Precision A/D and D/A Converters
Accurate Comparator Threshold Reference
High-Resolution Servo Systems
High Precision Test and Measurement Instruments
