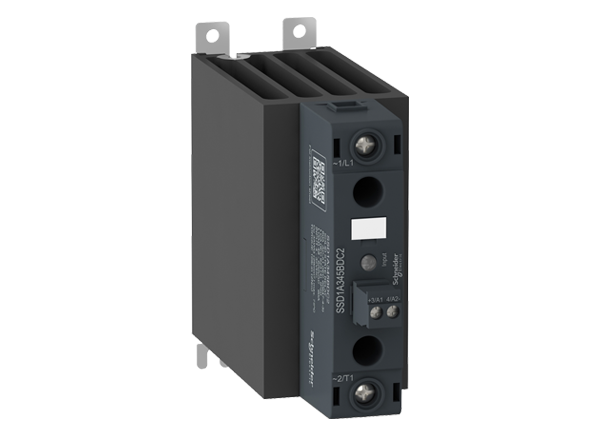

Schneider Electric SSD1 Single-Phase DIN-Rail Solid State Relays

Schneider Electric SSD1 Single-Phase DIN-Rail Solid State Relays provide high-power density of up to 60A, a built-in heat sink, DC and random switching options, as well as spring and screw input options. These industrial-mount SSRs are available in two configurations: 22.5mm relay and 22.5mm and 45mm contactor. They include a locating slot for DIN-rail mounting, a fixing hole for attaching relay to heat sink, LED input status indicator, clip-in legend for easy identification, and load output connection terminals. The 22.5mm relay configuration also includes control input connection terminals. The 22.5mm and 45mm contactor configurations feature a pluggable (screw or spring) input connector and optional lugs for panel mounting.

Schneider Electric SSD1 Single-Phase DIN-Rail SSRs offer 48V_AC to 600V_AC output and control circuit voltages of 4V_DC to 32V_DC and 90V_AC/V_DC to 280V_AC/V_DC. The EN 50155/IEC 61373/ IEC 60571-compliant relays are ideal for railway and rolling stock applications, while the IEC 60747-4-3-compliant devices are suitable for applications with high electromagnetic interferences.

Features

One-phase, DIN-rail mount devices offer a complete solution

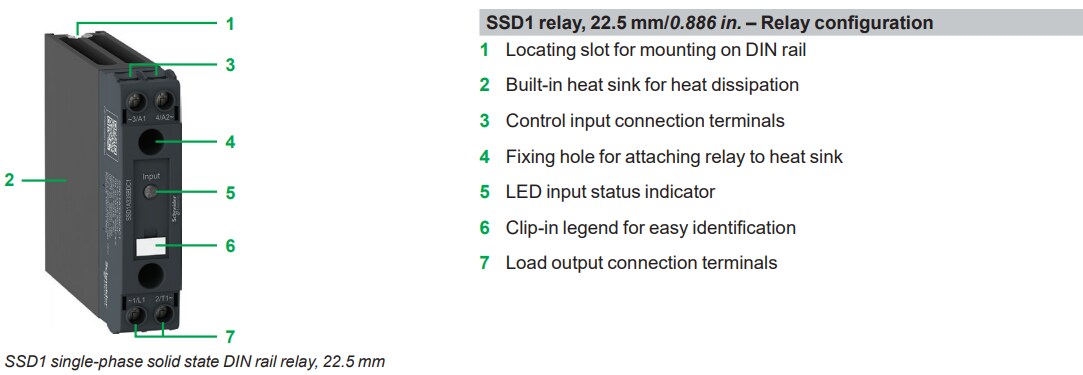

Available in two configurations: 22.5mm relay, and 22.5mm and 45mm contactor
Built-in heat sink
Fixing hole for attaching relay to heat sink
Locating slot for DIN-rail mounting
LED input status indicator
Clip-in legend for easy identification
Load output connection terminals
Random voltage switching option available

Control input connection terminals (22.5mm relay configuration)

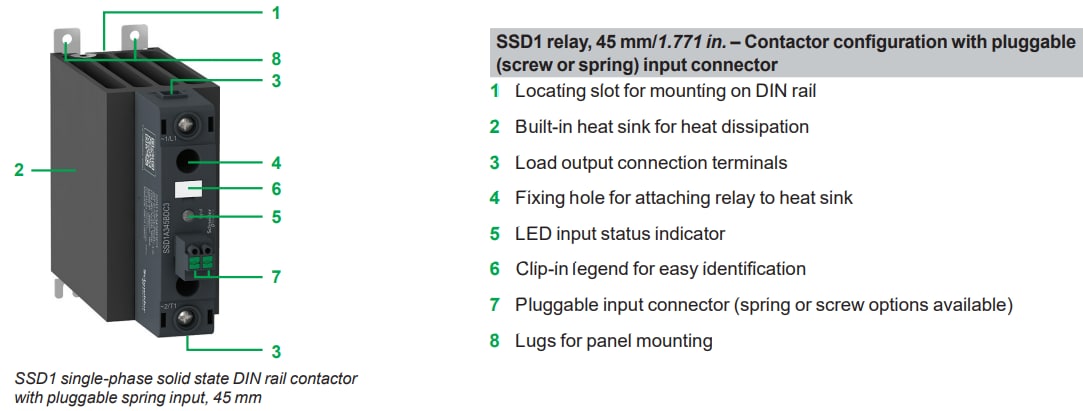

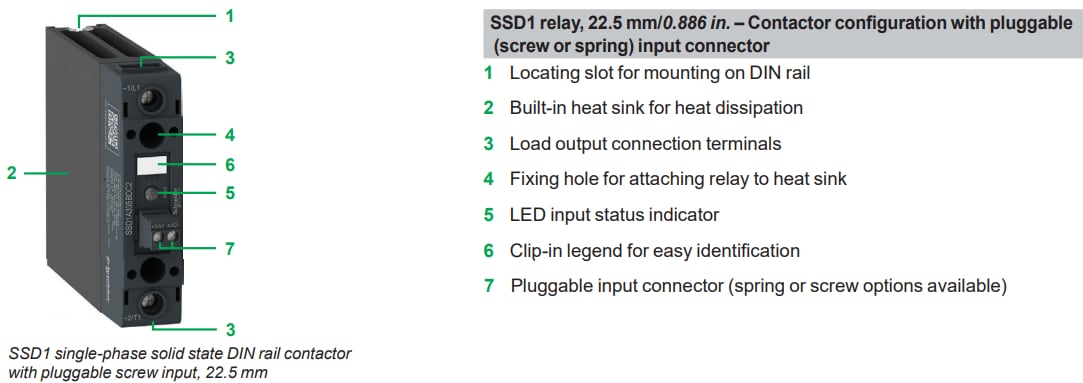

Pluggable (screw or spring) input connector and optional lugs for panel mounting (22.5mm and 45mm contactor configurations)
EN 50155/IEC 61373/ IEC 60571 compliance: Ideal for railway and rolling stock applications
IEC 60747-4-3 compliance: Suitable for applications with electromagnetic interferences
