KYOCERA AVX 9157 15-Position Standard I/O Connectors

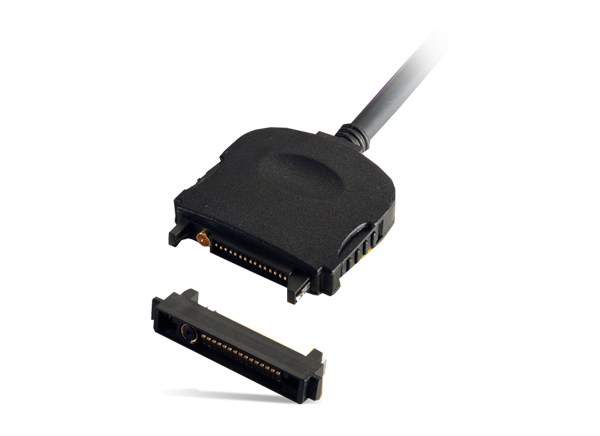

KYOCERA AVX 9157 15-Position Standard I/O Connectors have a patented 20° angled, self-cleaning face on the socket when mated with a plug. The SMT plug has unique location pyramids that provide positive alignment to portable devices and assist blind mating. The plug/cover connector has sprung contacts and is designed for termination to accessory equipment. These KYOCERA AVX connectors are designed to house fifteen signal contacts on a 1mm pitch rated at 1.5A. There is the option to include a switching RF coax. Applications include mobile phones, PDAs, medical equipment, and docking/charging for any portable device.


  • Patented 20° angled face gives self-cleaning face when mated with a plug
  • Metal latching area saves PCB real estate
  • Mechanical 50Ω switching coax for SMT termination
  • Single sprung plug contact design provides 10,000 mating cycles and cleaning/wiping actions
  • Optional termination to an RF coax using custom tooling
  • SMT plug with unique location pyramids
    • Positive alignment to portable devices and assistance in blind mating
  • RoHS compliant


  • Mobile phones
  • PDAs
  • Medical equipment
  • Docking/charging for any portable device


  • 1.5A/contact current rating
  • 125VAC voltage rating
  • -55°C to +125°C operating temperature range
  • 10,000 cycles durability
  • Glass-filled nylon 46, UL 94V-0 insulator material
  • Beryllium Copper (plug), Phosphor Bronze (Socket) contact material
  • Gold over Nickel plating
