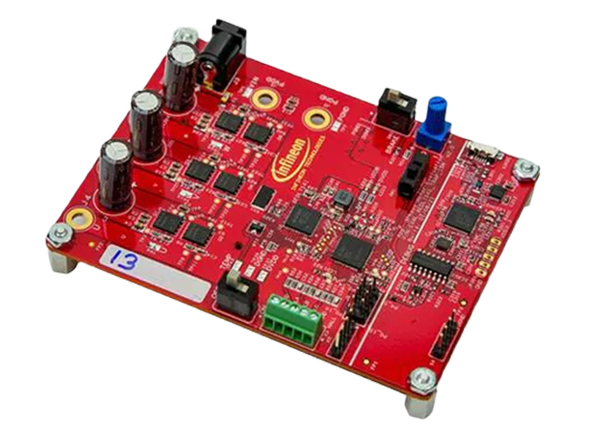

Infineon Technologies EVAL_6EDL7141_TRAP_1SH Motor Drive Board is based on the MOTIX™ 6EDL7141 smart three-phase driver. The high-efficiency module provides fully configurable operating parameters with an onboard debugger, allowing for a direct USB connection to a PC. Infineon EVAL_6EDL7141_TRAP_1SH Motor Drive Board utilizes trapezoidal commutation based on the 6EDL7141 smart three-phase driver. Additionally, the evaluation board operates independently or via Infineon motor control GUI.
BLDC motor drive board using trapezoidal/block commutation
Integrated and configurable onboard power supplies and gate drive outputs
Configurable protection modes - built-in debugger, direct connection to USB
Operates independently or with GUI
Motor control and drives
Simplified System Block Diagram
Infineon Technologies 6EDL7141 Gate Driver IC
Gate Driver IC designed for 3-phase BLDC or PMSM motor drive applications.
