Eaton AHC/AHC5/AHCF High-Voltage Ceramic Tube Fuses

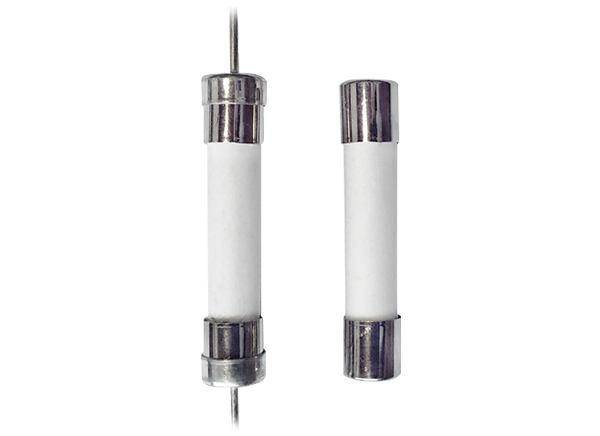

Eaton AHC/AHC5/AHCF High-Voltage Ceramic Tube Fuses are fast-acting performance fuses with a 6.3mm x 32mm (¼” x 1¼”) compact 3AB footprint. These fuses incorporate up to 500VAC/VDC ratings and provide reliable overcurrent protection up to 30A for high-voltage applications. The AHC/AHC5/AHCF high-voltage fuses feature very high interrupting ratings to help safely protect against dangerous high fault currents. These fuses can be used along with Bussmann series fuse holders as a cartridge fuse, offering replaceability, or in thru-hole installations. Typical applications include industrial control panels, motor control - UL 508A panels, variable frequency drives, energy storage and battery systems, and high voltage power conversions.
Features
- High-voltage ceramic tube fuses
- Compact 3AB footprint:
- 6.3mm x 32mm (¼” x 1 ¼”)
- Fast-acting performance
- Up to 500 VAC/VDC ratings
- Cartridge and axial lead versions are available
- Very high interrupting ratings to help safely protect against dangerous high fault currents
Applications
- Industrial control panels
- Variable frequency drives
- Energy storage and battery systems
- Motor control - UL 508A panels
- Uninterruptible Power Supplies (UPS)
- High voltage power conversion
Associated Fuse Holders
Eaton AHCA/AHC5A/AHCFA High-Voltage Ceramic Tube Fuses
Automotive grade fast-acting performance fuses with a 6.3mm x 32mm (¼” x 1¼”) compact 3AB footprint.
Bussmann / Eaton HVP Fuse Holders
Offers a 480V voltage rating, 15A to 30A current range, and a temperature rating of +150°C.
Bussmann / Eaton HVI Water-Resistant Fuse Holders
Offers a 600V voltage rating, 20A current, and IP54 rating for exposed locations.
Eaton S-8000 Panel Mount Fuse Blocks
Available in bolt-in, snap-in, and tight cluster mounting for 6.3mm x 32mm (1/4" x 11/4") fuses.
Eaton AHC High Voltage Tube Fuses
Fast-acting performance ceramic tube fuses with compact 1/4" x 1 1/4" (6.3mm x 32mm) 3AB footprint.
