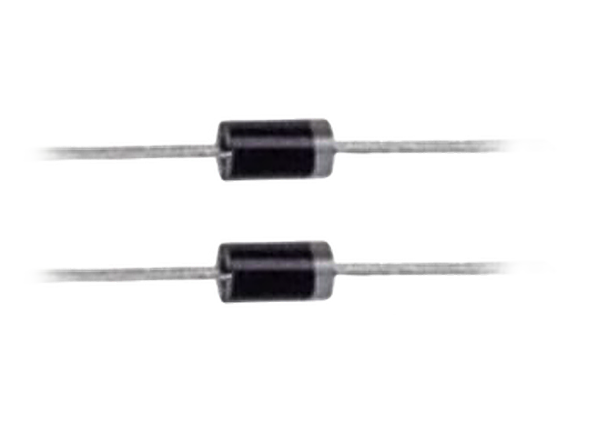

Eaton 12KPxxH Automotive TVS Diodes

Eaton 12KPxxH Automotive TVS Diodes are AEC-Q101 qualified and offer a peak power rating of 12000W at 103.4A to 249.9A current range. These diodes feature low inductance, low leakage current, and excellent voltage clamping capability. The 12KPxxH diodes leverage a V-Groove interlock and dimple design that offers high reliability. These TVS diodes are available in a broad range of footprints designed with the P-600/R-6 package. The 12KPxxH diodes operate from 20V to 72V voltage range and -55°C to 150°C temperature range. Typical applications include networking systems and body electronics, ADAS and safety systems, automotive lighting, and battery management systems.


  • AEC-Q101 qualified
  • 12000W peak power rating
  • 103.4A to 249.9A peak current range
  • Low inductance
  • Low leakage current
  • Excellent voltage clamping capability
  • 20V to 72V reverse standoff voltage range
  • -55°C to 150°C temperature range
  • P-600/R-6 package


  • Communication and infotainment systems
  • Networking systems and body electronics
  • Advanced Driver Assistance Systems (ADAS) and safety systems
  • Automotive lighting
  • Battery management systems
