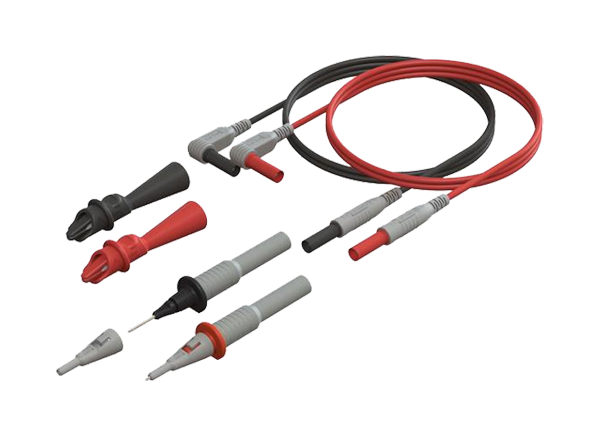

Cal Test Electronics CT4422 Fused Probe DMM Electrical Kit

Cal Test Electronics CT4422 Fused Probe DMM Electrical Kit features a 1000V 500mA fast-acting fused probe designed to protect both equipment and personnel. The small probes have an internal ceramic fuse, which cuts power in the event of a transient overvoltage. When the locking cover is in place, only 4mm of the tip is exposed to reduce short circuits and arc-flash risks in high category environments. The fused probe and alligator clips are rated 1000V CAT III / 600V CAT IV. This kit includes a unique locking tip cover, fully insulated medium alligator clips that fit conductors up to 7mm, and silicone-jacketed, straight to right-angle 4mm sheathed banana plug test leads. Cal Test Electronics CT4422 Fused Probe DMM Electrical Kit can be used for both handheld and bench digital multimeter (DMM) applications.

Features

  • Enhanced user safety in high-energy applications.
  • Rated to 1000V CAT III / 600V CAT IV per IEC/EN 61010-031
  • Fast-acting, type FF, 500mA ceramic fuse for transient overvoltages or arc-flash protection
  • Locking tip cover (remove with tool)
  • Easy fuse replacement
  • Alligator clip jaws open to 9mm
  • CE listed, LVD and RoHS 2 compliant

Applications

  • Handheld DMM
  • Bench DMM

Kit Contents

  • CT4300 - Fused probes (black and red pair)
  • CT4439 - Fully Insulated CAT IV alligator clips (black and red pair)
  • CT3754 - Silicone-jacketed, straight to right-angle 4mm sheathed banana plug test leads

Videos
