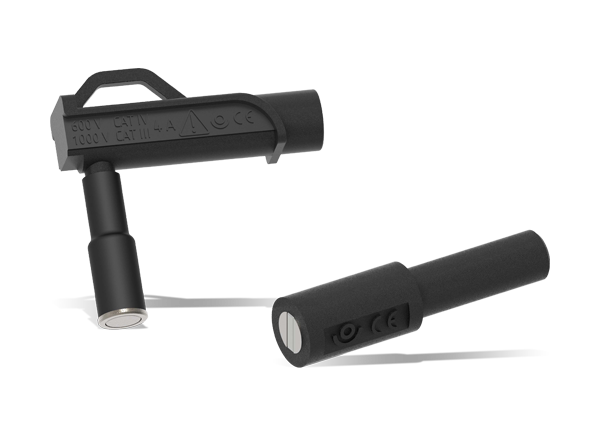

Cal Test Electronics CT3800 Magnetic 4mm Sheathed Banana Jacks
Cal Test Electronics CT3800 Magnetic 4mm Sheathed Banana Jacks are an ideal method for secure hands-free attachment to terminal block screw heads or any other ferromagnetic conductors. N35 rare-earth magnets provide high retention force of 1.2 Tesla. The banana jacks are offered in a 4A to 12A maximum current range, straight or right-angle orientation, and multiple color options with 6.6mm to 11mm diameter magnets.
Features
- Quick and easy connection
- Rare earth magnets provide a high retention force
- Multiple color options available
- 6.6mm to 11mm diameter magnets
- Straight or right-angle options
Specifications
- 4A to 12A current range
- +80°C maximum temperature
- Polypropylene (PP) insulation material
- N35/1.2 Tesla magnet
- RoHS 2 compliant
