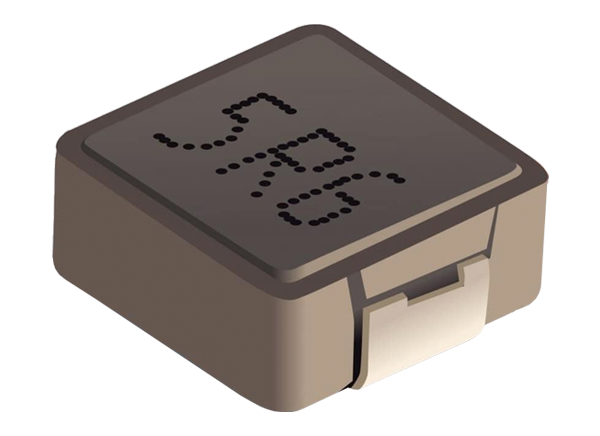

Bourns SRP6530A Shielded Power Inductors offer a 4A to 34A current range, 100nH to 10µH inductance range, and up to 200MHz frequency rating. These inductors are AEC-Q200 compliant and designed to meet the high current density and high-temperature requirements of various electronic applications. SRP6530A inductors feature shielded construction for low radiation and a metal alloy powder core. Bourns SRP6530A Shielded Power Inductors are ideal for DC/DC converters and power supplies in consumer, industrial, and telecom electronics applications.
Metal alloy powder core
High saturation current
Low buzz noise
4A to 34A heating current range
100nH to 10µH inductance range
Up to 200MHz frequency rating
7A to 70A saturation current
-55°C to +155°C operating temperature range
7.1mm x 6.6mm x 3mm dimensions
Bourns SRP High Current Power Inductors
Expansive range of products with heights ranging from 1mm to 7mm, RoHS compliant.
