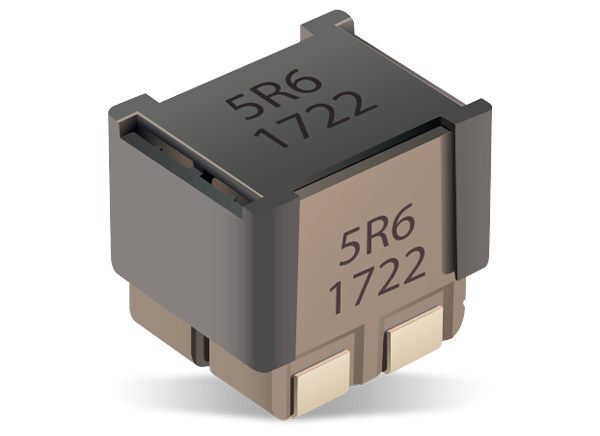

Bourns SRF1010DA Dual-Shielded Inductors are designed for Class-D amplifier applications. These inductors are dual-packaged with shielded construction and manufactured with a metal alloy powder core for a low coupling factor to minimize crosstalk. Additional features include high saturation current (5.5A to 38A), low DC resistance, and a wide operating temperature range of -55°C to +155°C. Bourns SRF1010DA Dual-Shielded Inductors are AEC-Q200 qualified, halogen free, and RoHS compliant.
Metal alloy powder core
Low coupling factor to minimize crosstalk
High saturation current
Halogen free and RoHS compliant
Class-D amplifier systems
Class-D output filters
5.5A to 38A saturation current
Rated current: inductance drops 30% at Isat
-55°C to +155°C operating temperature range
40°C temperature rise at rated Irms
Moisture sensitivity level (MSL) 1
12mm x 9.6mm x 11.3mm dimensions
Bourns SRF High Current Power Inductors
Designed for automotive applications, including information/entertainment systems.
