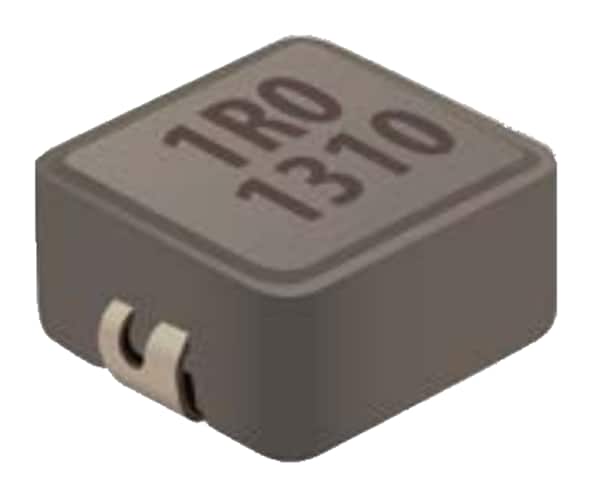

Bourns SRP5030TA Automotive Shielded Power Inductors feature a carbonyl powder core, shielded construction, and an inductance range of 0.1µH to 10µH. The series features a high saturation current and are AEC-Q200 qualified, RoHS compliant, and halogen free. Bourns SRP5030TA Automotive Shielded Power Inductors operate in a -55°C to +150°C temperature range (temperature rise included). Typical applications include automotive systems, DC/DC converters, and power supplies.
Carbonyl powder core
High saturation current
0.1µH to 10µH inductance range at 100KHz, 1V
±20% or ±30% inductance tolerance
2.5mΩ to 110mΩ typical
3mΩ to 128mΩ maximum
5 to 20 minimum Q range at 100KHz, 1V
18MHz to 320MHz typical SRF range
Moisture sensitivity level (MSL) 1
-55°C to +150°C temperature range (temperature rise included)
