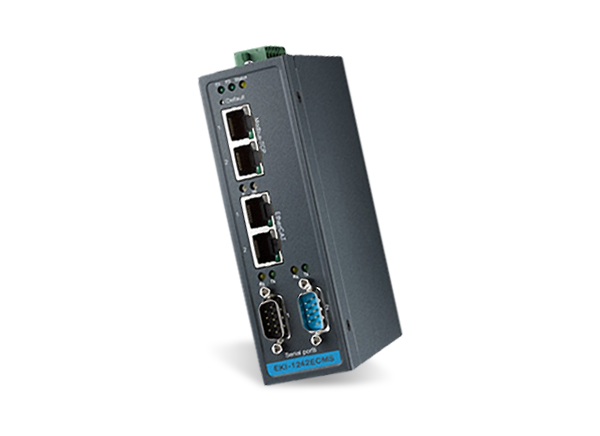

B+B SmartWorx EKI-1242ECMS EtherCAT Gateways

B+B SmartWorx EKI-1242IECMS EtherCAT Gateways provide seamless communication between Fieldbus and Industrial Ethernet. This gateway supports different protocol devices integrating new and existing Modbus RTU/TCP devices with EtherCAT networks. B+B SmartWorx EKI-1242IECMS is a simple and cost-effective way to bring the advantage of fast I/O data transfers between devices.

Features

  • Supports dual power input for power redundancy
  • Seamless integrate Modbus RTU/TCP and EtherCAT communication
  • Modbus Master mode supports 64 connections
  • Mounts on DIN-rail and Wall mount
  • Designed for protocol extensibility and adaption
  • Built-in real-time diagnostic to increase highly efficiency of device management

Specifications

  • Ethernet Communication
    • EtherCAT, Modbus TCP protocols
    • 4 ports
    • 10/100 Mbps speed, Auto MDI/MDIX
    • 8-pin RJ45 connector
    • Built-in 1.5 KV magnetic isolation protection
  • Serial Communications
    • RS-232/422/485, software selectable port type
    • 2 ports
    • Modbus RTU protocol
    • Port Connector DB9 male port connector
    • 5, 6, 7, 8 data bits
    • 1, 1.5, 2 stop bits
    • Parity none, odd, even, space, mark
    • Flow control XON/XOFF, RTS/CTS
    • 50bps ~ 921.6kbps baud rate
    • Serial Signals
      • RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND
      • RS-422: TxD+, TxD-, RxD+, RxD-, GND
      • RS-485: Data+, Data-, GND
  • Software
    • Modbus RTU/TCP
      • Master mode
      • Functions Support: 1, 2, 3, 4, 5, 6, 15, 16, 23
      • 64 connections (maximum)
    • EtherCAT
      • Slave type
      • Max. Total I/O data size (SDO and PDO objects)
      • 512bytes input
      • 512bytes output
      • 4 Fmmu channels
  • General
    • LED Indicators System
      • Power
      • System status
      • Protocol status LAN: speed, link/active, error
    • Built-in WDT (watchdog timer) reboot trigger
    • MicroSD Card: Configuration backup and restore
  • Mechanics
    • 42mm x 140mm x 95mm (1.66"x5.52"x3.75")
    • Metal enclosure with solid mounting hardware
    • Mounting: DIN-rail, Wall
    • 0.592Kg weight
  • Power Requirements
    • 12VDC to 48VDC power input, redundant dual inputs
    • Terminal block power connector
    • 5.2W power consumption
  • Environment
    • -10°C to +60°C operating temperature range
    • -40°C to +85°C storage temperature range
    • +10°C ~ 95% RH operating humidity
  • Regulatory Approvals
    • EMC CE, FCC Part 15 subpart B (Class A)
