Analog Devices Inc. LTM4663 Ultrathin μModule® TEC Regulator
Analog Devices Inc. LTM4663 Ultrathin μModule® Thermo-Electric Cooler (TEC) Regulator combines a TEC controller, linear power stage, switching regulator, inductor, and all support components in a tiny LGA package. Operating over an input voltage range of 2.7V to 5.5V, the LTM4663 supports a 1.5A continuous sink or source current capability. Only input and output capacitors are needed. The LTM4663 has two self-correcting, auto-zeroing amplifiers (Chopper 1 and Chopper 2) to serve as the thermistor input amplifier and the temperature feedback control loop.
The LTM4663 supports NTC, PTC thermistors, and Resistive Temperature Detectors (RTD). The maximum cooling and heating currents can be programmed independently as well as the maximum TEC voltage.

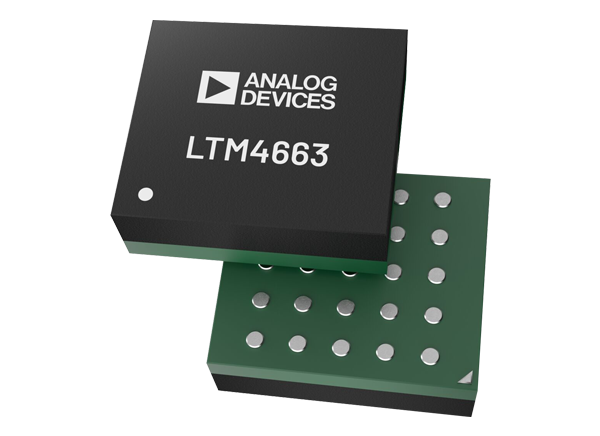

The LTM4663 μModule TEC Regulator is offered in a compact, RoHS compliant 3.5mm x 4.0mm x 1.3mm LGA25 package, with a wide -55°C to +125°C operating temperature range.
Features
- Two built-in zero-drift, rail-to-rail chopper amplifiers
- 2.7V to 5.5V input voltage range
- 1.5A driving capability
- 1% accuracy 2.5V internal reference output
- TEC voltage and current monitoring
- Independent programmable heating and cooling current limit
- Programmable maximum TEC voltage
- Default 2MHz switching frequency
- Synchronization from 1.85MHz to 3.25MHz
- Capable of NTC, PTC, and RTD thermal sensors
- -55°C to +125°C operating temperature range
- 3.5mm x 4mm x 1.3mm LGA25 package
- RoHS compliant
Applications
- TEC temperature control
- Optical networking systems
- Optical modules
- LiDAR systems
Related Eval Board
Analog Devices Inc. LTM4663 Demo Board DC2902A
Configured to evaluate the operation of the LTM4663 μModule regulator.
Related Products
Analog Devices Inc. Regulátory µModule LTM46xx
Řešení pro správu napájení v kompaktních pouzdrech BGA a LGA pro povrchovou montáž.
Typical Application Circuit
Block Diagram
