Analog Devices Inc. HMC292A GaAs MMIC Double-Balanced Mixers

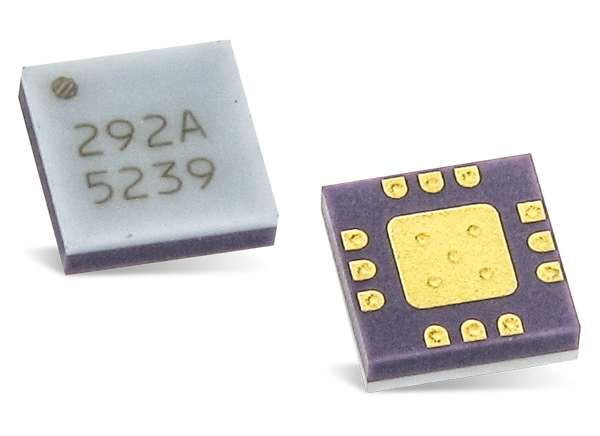

Analog Devices Inc. HMC292A GaAs MMIC Double-Balanced Mixers are miniature passive GaAs MMIC double-balanced mixers that can be used as an upconverter or downconverter from 14GHz to 32GHz. The on-chip baluns offer excellent isolation. The HMC292A mixers from Analog Devices do not require external components or DC bias. All data is measured with the chip in a 50Ω test fixture connected via 0.076mm (0.003 inches) ribbon bonds of minimal length less than 0.31mm (<0.012 inches). The applications include microwave point-to-point radios, LMDS, and SATCOM.
Features
- 20dB typical input IP3 at 14GHz to 30GHz
- 9dB typical conversion loss at 14GHz to 30GHz
- DC to 8GHz IF frequency range
- 46dB typical LO to RF isolation
- 34dB typical LO to IR isolation
- 10dB typical RF return loss
- 9dB typical LO return loss
- Passive: No DC bias required
- Package options
- 12-terminal, 3mm x 3mm LCC
- 7-pad bare die
- RoHS compliant
Applications
- Microwave and small aperture terminal (VSAT) radios
- Test equipment
- Point-to-point radios
- Local multipoint distribution service (LMDS)
- Military
- Electronic warfare (EW)
- Electronic counter measure (ECM)
- Command, control, communications, and intelligence (C3I)
Pin Configuration (LCC)
Pin Configuration (Bare Die)
Application Circuit (LCC)
Application Circuit (Bare Die)
Development Tools
Analog Devices Inc. EV1HMC292ALC3B Eval Board for HMC292 GaAs MMIC
Demonstrates the HMC292A GaAs MMIC Double-Balanced Mixers operating from 16GHz to 32GHz.
