Analog Devices Inc. EVAL-ADCM-1 Evaluation Kit

Analog Devices Inc. EVAL-ADCM-1 Evaluation Kit is a demonstration and development platform based on the ADcmXL1021-1 Single Axis Vibration Sensing Module. The EVAL-ADCM-1 Evaluation Kit includes an ADcmXL1021-1 Sensor Module, a Breakout Board, an ADcmXL Interface Board, an Infineon Technologies EZ-USB™FX3^™ Board, and the cables to connect them together. The EZ-USB FX3 Board allows connection to a PC enabling users to access evaluation software for effortless configuration of the module, register setup, data display, and data logging.

Features

Enables evaluation of the ADcmXL1021-1 Single Axis Vibration Sensing Module
Connects to a PC for access to a Graphics User Interface (GUI)
Evaluation software enables effortless configuration of the module, register setup, data display, and data logging
High-speed SPI to USB adaptor for high data rate Real-Time Streaming (RTS)

Kit Contents

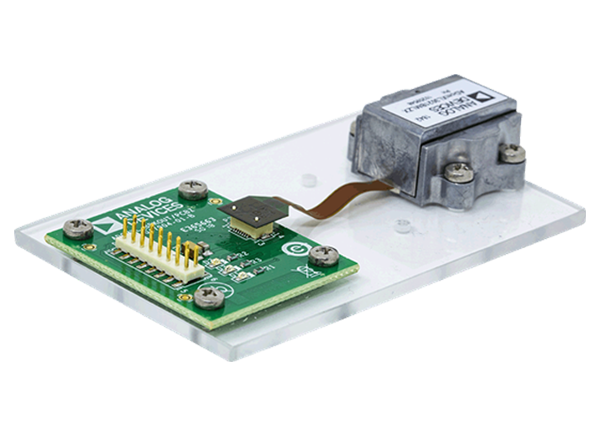

ADcmXL1021-1 Module
ADCMXL_BRKOUT/PCBZ Breakout Board
ADcmXL FX3 Interface Board
Infineon Technologies EZ-USB™ FX3 Board (CYUSB3KIT-003)
Acrylic mounting plate (2" x 3")
8x Mounting Screws
2" Ribbon Cable, 16-pin conductor, 2mm connector pitch (required for RTS Mode communications link)
12" Ribbon Cable, 16-pin conductor, 2mm connector pitch
