Analog Devices Inc. EVAL-HMC7545 Eval for HMC7545 Signal Conditioners

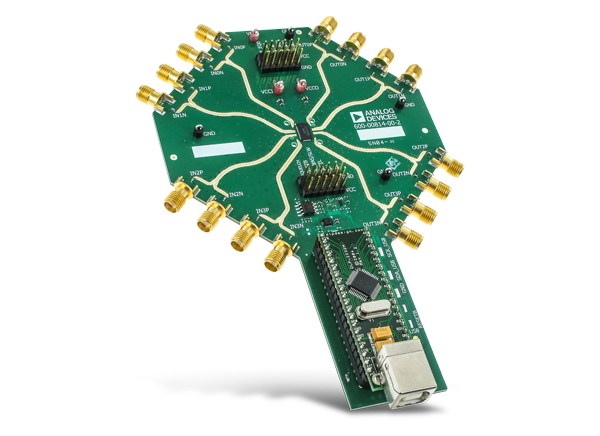

Analog Devices EVAL-HMC7545 Evaluation Board is a demonstration platform that enables designers to observe the features of the HMC7545 4-Channel Signal Conditioner. The EVAL-HMC7545 Evaluation Board includes a Graphical User Interface (GUI) and operates off a signal supply. The GUI allows the designers to validate high-performance receive CTLE equalization and transmit de-emphasis capabilities. The GUI also validates out-of-band signaling and receive detect functions required by SAS/SATA and PCI Express.
