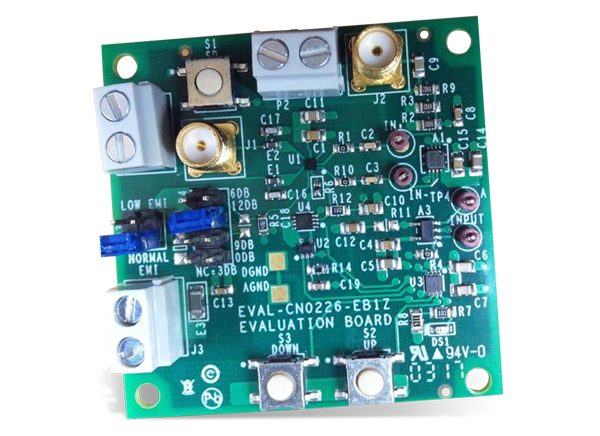

Analog Devices Inc. EVAL-CN0226-EB1Z Portable Audio Amp Eval Board
Analog Devices EVAL-CN0226-EB1Z Evaluation Board is designed to evaluate the performance of a portable audio amplifier with a volume control circuit. The eval board includes a complete, mono audio amplifier with volume control, glitch reduction, and a 3W Class-D output driver. The amplifier circuit includes the AD5116 digital potentiometer, SSM2375 Class-D amplifier, as well as the dual ADA4051-2 and single AD8515 op amps. The SSM2375 Class-D driver amplifier generates up to 3W output power into a 3Ω load, with 93% power efficiency at 5V, built-in pop-and-click suppression, and shutdown mode.
The design of the amplifier circuit makes it well-suited for low-power and/or portable applications. The circuit's preconditioning input stage supports compatibility with a wide range of audio input signals. Offered as a low-power solution, the circuit can be powered by a cell battery.
Simplified Schematic
Associated Products
Analog Devices Inc. AD5116 64-Position Digital Potentiometers
Single-Channel, 64-Position, Push-Button, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometers
Analog Devices Inc. SSM2375 High-Efficiency Class-D Audio Amplifiers
Filterless, High-Efficiency, Mono 3W Class-D Audio Amplifiers.
Analog Devices Inc. AD8515 1.8V Operational Amplifiers
1.8V Low-Power CMOS Rail-to-Rail Input/Output Operational Amplifiers.
Analog Devices Inc. ADA4051-1/ADA4051-2 Zero-Drift Amplifiers
1.8V, micropower, zero-drift, dual rail-to-rail input/output op amps.
