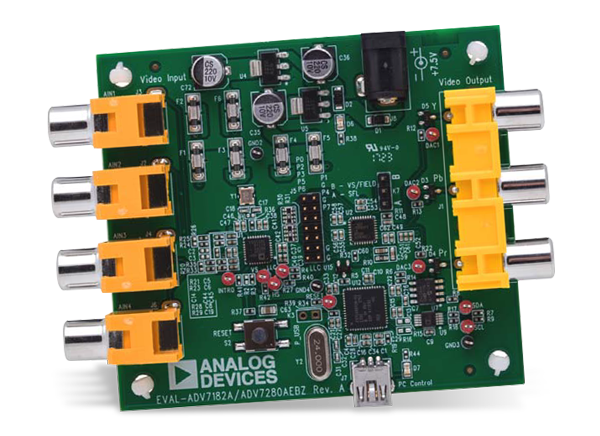

Analog Devices Inc. EVAL-ADV7182AEBZ Evaluation Kit is used to evaluate the ADV7182A video decoder. The EVAL-ADV7182AEBZ evaluation kit contains an EVAL-ADV7182AEBZ evaluation board and all of its necessary peripherals. A user guide is included that provides a detailed overview of the Analog Devices EVAL- ADV7182AEBZ evaluation board hardware and the software.
Four video input ports capable of accepting any of the following formats
Differential CVBS, S-Video (Y/C)
Digital (ITU-R BT.656) and YPbPr outputs
Analog Devices Inc. ADV7182 10-Bit SDTV Video Decoder
Detects & converts standard analog baseband video signals into a 4:2:2 component video data stream.
