The ADuM25x/ADuM26x data channels are independent and available in a variety of configurations. The data channels have a guaranteed data rate of 150Mbps maximum and 5kVrms withstand voltage rating.

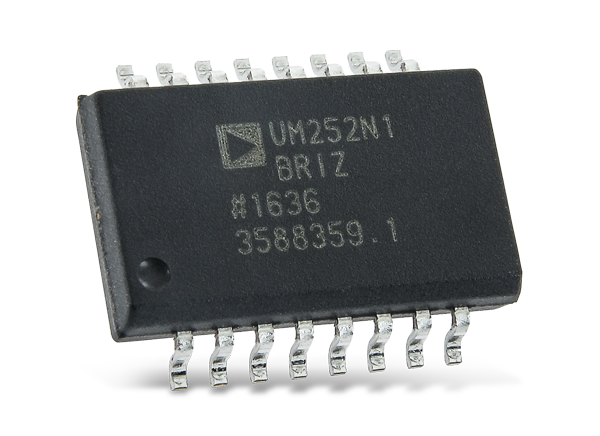

Analog Devices ADuM25x/ADuM26x Digital Isolators operate on either side of a supply voltage ranging from 1.7V to 5.5V. The capability to operate on either side of the supply voltage enables voltage translation functionality across the isolation barrier and compatibility with lower voltage systems.
Based on iCoupler® technology, the ADuM25x/ADuM26x Digital Isolators ensure DC correctness in the absence of input logic transitions. Additionally, the isolators feature two different fail-safe options. The fail-safe options allow the outputs to transition to a predetermined state when the input power supply is not applied or the inputs are disabled.
