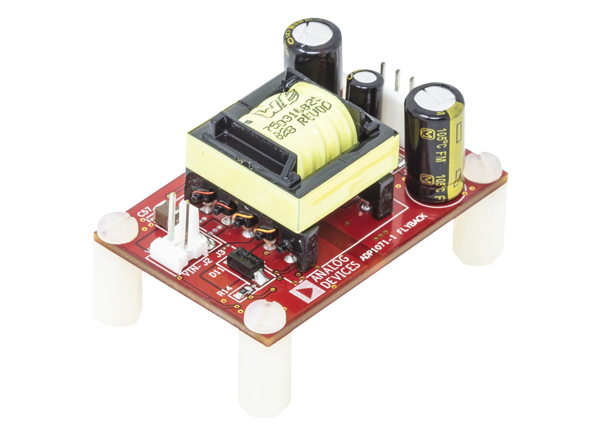

Analog Devices Inc. ADP1071-1EVALZ Evaluation Board helps designers evaluate the operation and performance of the ADP1071-1 in flyback topology. The ADP1071-1EVALZ Eval Board is set up to act as an isolated power supply solution that incorporates three output voltages, (+5.5V, +24V, and −15V) at a total rated power of 15W. The evaluation board provides 5kV isolation in a compact form factor. This allows the ADP1071-1EVALZ Evaluation Board to be suitable for industrial applications, which usually have a variety of voltage rails.
Full support evaluation kit for the ADP1071-1
15W multioutput flyback topology
+24V, +5.5V, and -15V output voltage (VDC)
Light load mode (LLM) operation
Dedicated internal primary and secondary side MOSFET drivers
External reference signal tracking
Precision enabled undervoltage lockout with hysteresis
Short-circuit, output overvoltage, cycle by cycle input overcurrent, and overtemperature protection
Soft start and soft stop functionality
DC power supply capable of 18VDC to 32VDC, 1 A output current capability of the supply
Electronic load capable of 15W, 0V to 30V rating capability of the load
Oscilloscope capable of ≥500MHz bandwidth, 2 channels to 4 channels
Precision digital multimeter (HP 34401 or equivalent)
Analog Devices Inc. ADP1071 Isolated Flyback Controllers
Feature OVP, UVLO, precision enable with adjustable hysteresis, OTP, and power-saving LLM.
