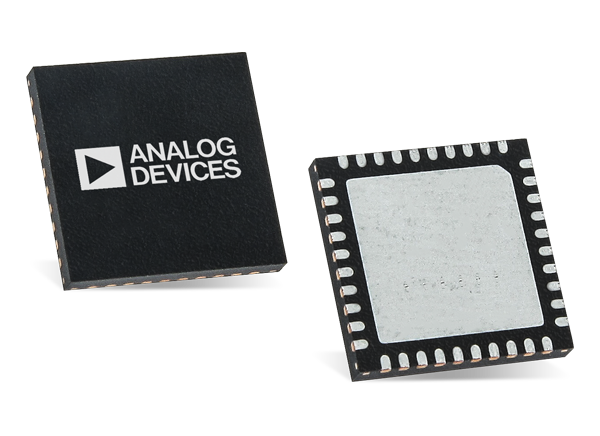

Analog Devices Inc. ADMV8432 Monolithic Microwave Integrated Circuit
Analog Devices Inc. ADMV8432 Monolithic Microwave Integrated Circuit (MMIC) is a tunable band-pass filter with a selectable pass-band frequency. The 3 dB filter bandwidth is >17% of the center frequency (fCENTER). Additionally, fCENTER can be varied between 16.5GHz to 29.5GHz by applying an analog tuning voltage between 0V to 15V.
The ADMV8432 is a smaller alternative to physically large switched filter banks and cavity tuned filters. The tunable filter has excellent microphonics due to the monolithic design. The filter provides a dynamically adjustable solution in advanced communications applications.
Features
- Amplitude settling time: 200 ns typical
- Wideband rejection: ≥30 dB
- Single chip implementation
- 40-lead, 6mm × 6mm, RoHS compliant LFCSP
Applications
- Test and measurement equipment
- Military radar and electronic warfare (EW) systems
- Video satellite (VSAT) communications
Evaluation Board
Analog Devices Inc. AD-FMCDAQ2-EBZ Evaluation Board
Evaluation board in an FMC-compatible form factor, for wideband RF signal processing systems.
Associated Products
Analog Devices Inc. ADMV8416 Tunable Bandpass Filters (7-32GHz)
A tunable band-pass filter that features a user selectable pass-band frequency.
Analog Devices Inc. ADMV8420 Tunable Band-Pass Filters
Monolithic microwave integrated circuits that feature a user-selectable passband frequency.
