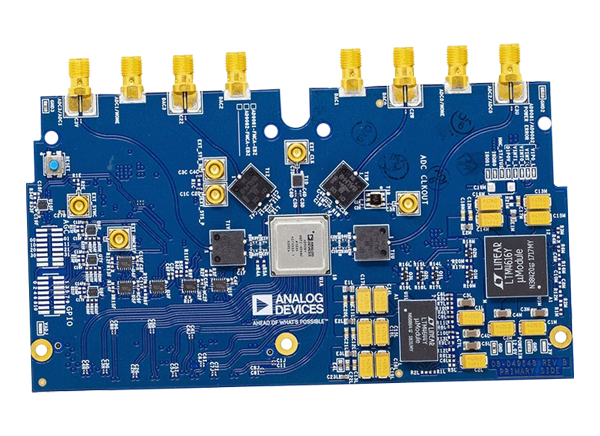

Analog Devices Inc. AD9081-FMCA-EBZ Evaluation Board
Analog Devices Inc. AD9081-FMCA-EBZ Evaluation Board includes all of the support circuitry required to operate the AD9081 in various modes and configurations. The AD9081-FMCA-EBZ Evaluation Board connects to the Analog Devices ADS9-V2EBZ for evaluation with the ACE software. The ADI AD9081-FMCA-EBZ Evaluation Board can interface to commercially available field-programmable gate array (FPGA) development boards from Xilinx® or Intel®.
Features
- Fully functional evaluation boards for the AD9081
- PC software for control with ACE software
- Option to switch to external direct clocking
- On-board clocking provided by the HMC7044 manages device and FPGA clocking
Kit Contents
- AD9081-FMCA-EBZ evaluation board
- Subminiature push on female (SMP-F) to Subminiature Version A female (SMA-F) cables
- MicroSD card (AD-FMC-SDCARD)
Associated Products
Analog Devices Inc. Čtyřnásobné analogově digitální převodníky AD9081 MxFE®
Integrovaná zařízení se 4 16bitovými, 12GSPS a s VF DAC jádry, a 4 12bitovými, 4GSPS, VF ADC jádry.
Front & Back View
Layout
