Analog Devices Inc. AD4112 ADC Evaluation Kit is designed to evaluate AD4112 24-bit, 31.25kS/s ADC. This kit offers a ±10V input voltage range with eight single-ended channels or four fully differential channels. The AD4112 evaluation kit incorporates open wire detection and four current channels operating from 0mA to 20mA. All channels have onboard overvoltage and overcurrent protection.
The AD4112 ADC evaluation kit includes voltage reference, power and data insulation, and can be connected to the Analog Devices Inc. SDP-B system demonstration platform (EVAL-SDP-CB1Z). The AD411X Eval+ evaluation software configures the AD4112 device functionality and provides dc time domain analysis and associated noise analysis.
Fully featured evaluation kit for the AD4112 ADC
PC control in conjunction with Analog Devices Inc. SDP-B system demonstration platform (EVAL-SDP-CB1Z)
PC software for control and data analysis (time domain)

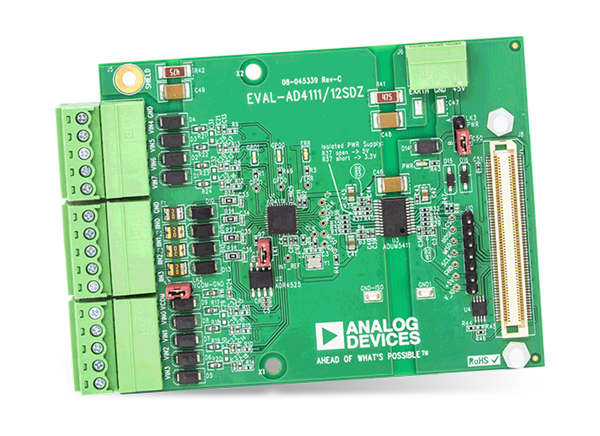

EVAL-AD4112SDZ evaluation kit
AD411X Eval+ evaluation software
◊ EVAL-SDP-CB1Z system demonstration platform
◊ DC signal source
◊ PC running Windows with USB 2.0 port
Eval Kit Block Diagram
Analog Devices Inc. AD411x Integrated ±10V & 0-20mA AFE; 24-Bit SD ADC
Sigma-delta ADCs with ≥1MΩ bipolar high impedance, ±10V voltage inputs, and 0mA to 20mA inputs.
