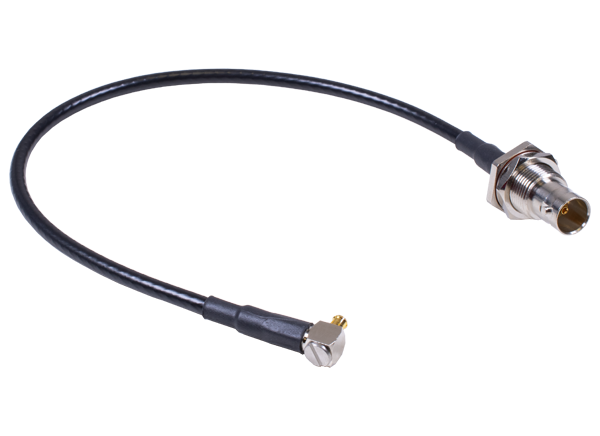

Amphenol RF BNC to MCX Cable Assemblies
Amphenol RF BNC to MCX Cable Assemblies offer a 75Ω electrical impedance rating, DC to 12GHz frequency range, and a Belden 4855R or a flexible RG-316 cable. These cable assemblies feature straight or right-angle BNC plugs to straight or right-angle MCX connectors. Cable assembly links vary from 6" to 118.11" or 1 meter to 5 meters. Amphenol RF BNC to MCX Cable Assemblies have brass, and nickel plating on the jacks and gold plating on the plugs.
Specifications
- DC to 12GHz frequency range
- 75Ω impedance
- Materials
- Brass jack, nickel plating
- Gold plated plug
- 6" to 5 meters cable assembly length range
- Cable options
- Belden 4855R
- Flexible RG-316 cable
Applications
- IoT wireless antenna modules
- Remote access points
- Surveillance systems
- Wireless control systems
- Ruggedized tablets
