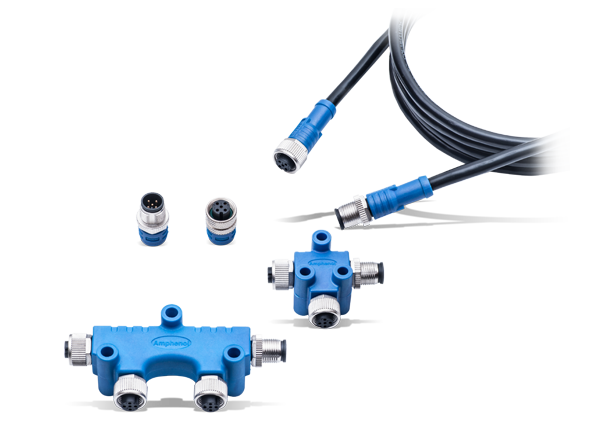

Amphenol LTW NMEA 2000 Connector System
Amphenol LTW NMEA 2000 Connector System is specifically designed to meet NMEA 2000 protocols and standards. This IP68-rated family includes multi-port, standard and metric circular connectors, sensor and actuator cables, and elbow joints. These products are ideal for connecting marine electronic equipment and display units within ships and boats. The Amphenol LTW NMEA 2000 line features high signal reliability, allowing multiple electronic devices to share data over one common channel. Starter kits are available in basic or professional packages to help build NMEA 2000 networks with varying levels of complexity.Features
- IP68 (1m/24 hours) waterproof rating
- Temperature range
- Receptacle: -40°C to +85°
- Overmold with cable: -20°C to +80°C
- Field installable: -40°C to +105°C
- 5-pin contacts
- 4A current rating
- 250VAC/VDC voltage rating
- UL 94V-0 flammability rating
- NMEA 2000 approved, CL2 cables
Applications

Starter Kits
