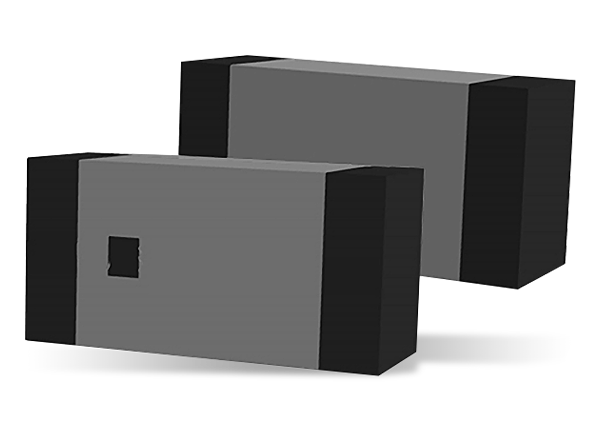

Abracon AMCA31 Surface Mount Chip Antennas
Abracon AMCA31 Surface Mount Chip Antennas offer linear polarization in a small 3.2mm x 1.6mm x 1.2mm package. The non-ground mounting type antennas feature 3W maximum power handling and are matched to 50Ω. The components are lead-free and suitable for RoHS-compliant reflow. These Abracon AMCA31 Surface Mount Chip Antennas are an alternative to larger PCB solutions.
Features
- 2450MHz or 2800MHz frequency
- ≥90MHz or ≥150MHz bandwidth options
- Typical gain
- 0.5dBi peak
- -1dBi average
- <2:1 VSWR
- 50Ω impedance
- 3W maximum power capability
- -40°C to +85°C operating temperature range
- 3.2mm x 1.6mm x 1.2mm in dimension
- Non-grounded mounting type
- Moisture Sensitivity Level (MSL) 1
- Lead-free and RoHS/RoHS II compliant
Applications
- AMCA31-101-2R450G-S1F-T3
- BLUETOOTH®/WiFi (2.445GHz)
- IoT Devices
- BLUETOOTH® headsets or earpieces
- Industrial automation
- Alternative to larger PCB solutions
- AMCA31-2R800G-S1F-T
- WiMAX (2.800GHz)
- User equipment (dongles, modems, etc)
- Alternative to larger PCB solutions
- Sunspot analysis
- AMCA31-2R450G-S1F-T
- BLUETOOTH®/WiFi (2.445GHz)
- High-density
- BLUETOOTH® headsets or earpieces
- Computer mouse/keyboard
- Industrial automation (PROFINET)
- Video game systems
- Alternative to larger PCB solutions
